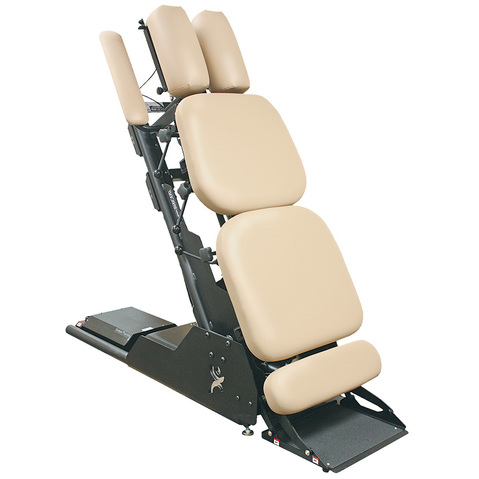

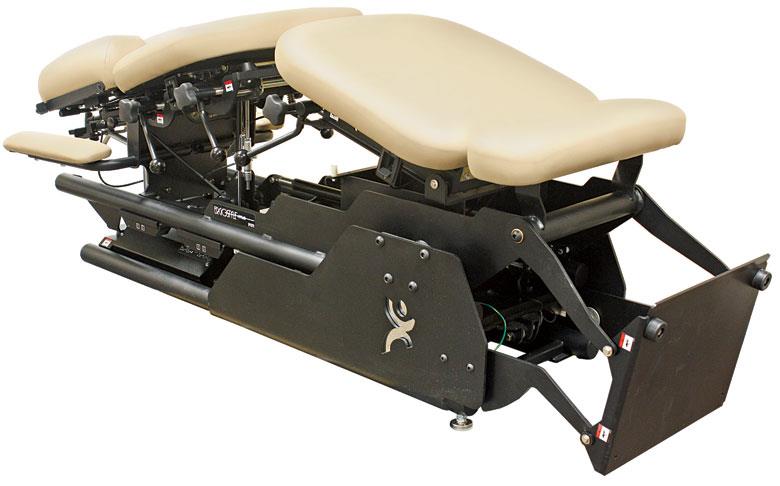

The ErgoStyle™ HYLO reinvents today's adjusting table with numerous upgradeable features. Our base table expands your practice with its advanced tilt mechanism, featuring a controlled safety system and constant tilt speed. Upgrade your options by adding power chest and pelvic extension (extends 14.5") with single side control; our patented, free-falling Accelerator™ III Manual Cocking Drops (Patent# 6,679,905); foot controls; and super silent air compressor options.

Base Table Features
Fixed Table Height: 23.5"
Table Length Adjustment: 54” - 83”
Tilting Degrees: 0 to 63 degrees
Tilting Mechanism: Gear drive hydraulics with a "soft stop" in the down position
Constant Tilt Speed with Automatic Weight Compensation, regardless of patient’s weight and height (tilt speed up, 9 seconds; tilt speed down, 11 seconds)
Controlled Safety System: 2-step tilt-down control
Stationary Chest and Fixed Pelvic Section
Fixed Ankle Rest with foldaway footplate
Wide Seamless Cushions (23.5") with multidensity foam
Durable Powder-coated Finish

Table Specifications:
Lifting Capacity: 400 lbs.
Table Weight: 405 lbs.
Table Dimensions: 54” - 83”
Rated Voltage: 115/230 V
Rated Frequency: 60/50 Hz
Current: 5.8/4.8 A
Electrical Class: Class 1, Type B
Duty Cycle: 10%
Pump Type: Hydraulic Gear Pump
Shipping Weight: 540 lbs.
Shipping Dimensions: 89” L x 31” W x 31” H

SKU: PHS-EH9510
