Easy access to Radial Pressure Wave Therapy.

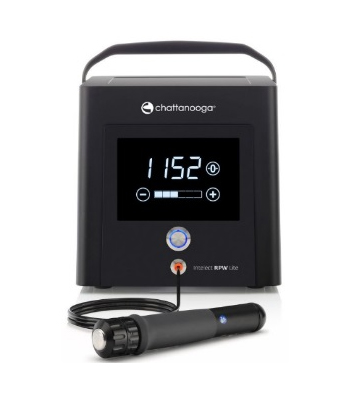

For today’s busy physical therapist, the need to treat patients efficiently is crucial. The Intelect® RPW Lite is a compact and user-friendly device that delivers effective Radial Pressure Wave (RPW) therapy with the minimum of fuss. Its range of essential features have been designed to remove the complexity from RPW treatment, leaving therapists free to concentrate on their patients.

TARGETED PAIN RELIEF

The Intelect® RPW Lite allows for the treatment of indications with radial, pneumatically-generated, low-energy acoustic waves, or ‘pressure pulses’. The applied pressure pulse propagates radially within the tissue, generating a therapeutic effect.

TREATMENT GUIDELINES

• Localize the painful areas you plan to treat
• Select the most appropriate transmitters based on treatment goal and targeted tissue
• Apply water-based ultrasound gel to the skin overlying the treatment area
• Always start with a lower level of intensity
• Perform a post-treatment test for improved function and decrease in pain

​As a result of clinical evidence, most treatment protocols are based on 5 to 10 sessions of 1,500-2,500 shocks.

INDICATIONS

• Achilles Tendinopathy1
• Carpal Tunnel Syndrome2
• Plantar Fasciitis3
• Trigger Finger4
• Trigger Points5
• Pain And Inflammation Management in Orthopaedic Conditions6

PORTABILITY

• Compact and easy to handle.

LARGE LCD TOUCH SCREEN

• For quick and easy control of treatment parameters

PULSE COUNTER
INTENSITY LEVEL

• 6 preset energy levels reduce set-up time whilst providing a useful range of settings for a variety of possible RPW indications.

EASY CONNECT

• SPARROW™ handpiece technology with quickrelease connection allows easy interchange of handpieces, ideal for treatments that require multiple different transmitters.

Includes:

• Cleaning brush
• Transmitter D20-S Black RPW Lite, 20mm + DI15 Deep Impact 15mm Transmitter
• Intelect RPW Lite SPARROW™ handpiece kit grey
• Tube set (includes 3 tubes) for RPW Lite
• Transmission gel for RPW and shock wave (250 ml)

ENERGY - 6 Energy levels: 6-18Hz/max 2.7 bar
